A Time Label Definition (LAD) Label can be added by first selecting the “Time” tab in the LAD Labels section of the Template Record (TAD) (also known as a TR) page. After selecting the “Time” tab, you must enter the Label Name and Time(s) in the corresponding fields. Once you have entered the Label Name and Time(s), you must select either the “Save” or “Submit” button. By selecting the “Save” button, it will record your entries for the Time Label, but not send the TR for further processing. By selecting the “Submit” button, it will send the TR for further processing and no additional changes will be made until the TR is selected for update.
Add a Label Definition(s) to a Label Type
- Enter a new Label name and Time in the corresponding fields.
- Once you enters the Time in the valid format separated by commas and click anywhere on the page, the Time will be auto-formatted with a “Close” icon next to each item. You can select the “Close” icon to remove the Time in valid format.

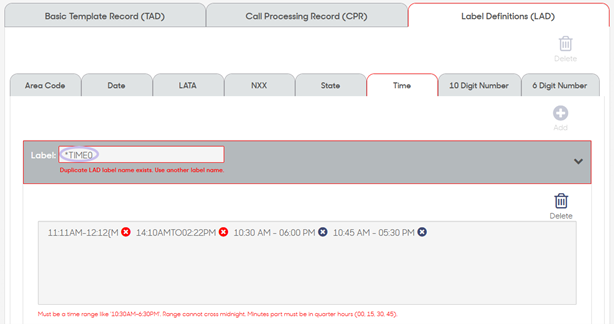

- When the Time is in invalid format, a “Close” icon will be displayed with an error message below the text box. You must select the “Close” icon to remove the Time in invalid format.
- Select the “Delete” icon to delete the Label.
Add Multiple Labels to a Label Type

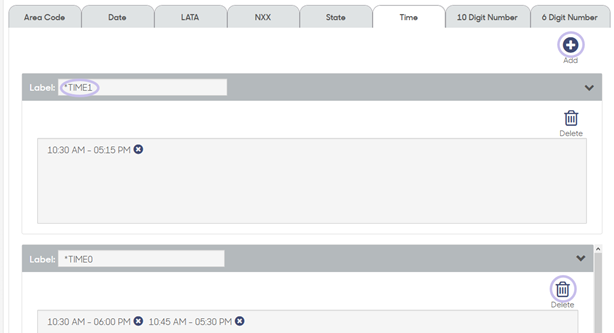

- Select the “Add” icon at the top right of the page.
- A new Time text box will be displayed. Enter the values in the corresponding fields.
- Select the “Delete” icon to delete the previously added Time.
- Once the Time Label has been added, you can select the arrow sign (>) to the right of Label to expand the section and view the details of the Label.
Learn more about this topic in the following video!
Disclaimer: This video is intended to be used as a guide for educational purposes only. Pages shown in the video may differ slightly from the Production Environment.
