To retrieve the SCP Administration (SID) information with CCS Network:
- On the SID page, you can manually enter the CCS Network or select the “List”
icon to view the list of CCS Networks. The “Choose from the list” pop-up window is displayed with the list of available CCS Networks. - You can either enter the full or partial desired CCS Network in the search box or select the desired CCS Network from the list.
- By selecting the desired CCS Network from the list, the CCS Network will be selected automatically in the CCS Network field. You must select the “Retrieve” button to retrieve and view the CCS Network information.

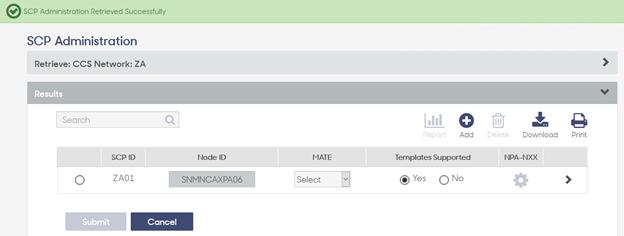

The Results portion of the SID page will be displayed with the message, “SCP Administration Retrieved Successfully” displayed at the top of the page. The SID results page consists of the SCP ID, the Node ID, the MATE, the Templates Supported and the NPA-NXX action button.

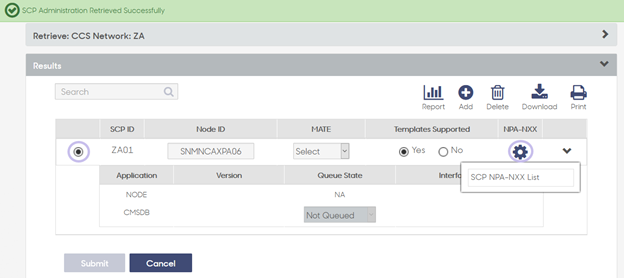

On the SID page, select the desired SCP ID radio button and then the “Right Arrow”
icon. This will provide the additional information for the SCP ID like Application, Version, Queue State and Interface Manual. Also, the NPA-NXX icon will be enabled. By selecting the NPA-NXX drop down menu, you will be returned to the SCP NPA-NXX List page. On the SCP Administration page, select the “Cancel” button to return to the SID page.
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.
