The TFNRegistry™ (tfnregistry.somos.com) maintains reference data for Common Channel Signaling (CCS) Network codes administered by the Administrator to identify the CCS networks served by the Service Control Points (SCPs). The following table shows the state transition possibilities of a CCS Network Information (NET) record:
|
Transition From |
Trigger/Action |
Transition To |
|
|
You create a CCS Network record. |
ACTIVE |
|
ACTIVE |
NET record is disconnected successfully. |
DISCONNECT |
|
DISCONNECT |
You update a Status to ACTIVE state. |
|
|
DISCONNECT |
You delete, or Purge process deletes CCS Network record. |
|

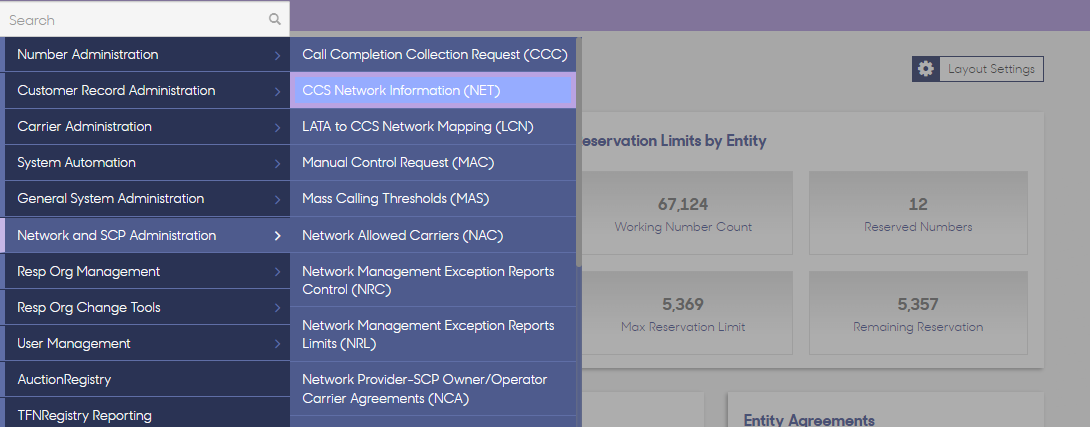

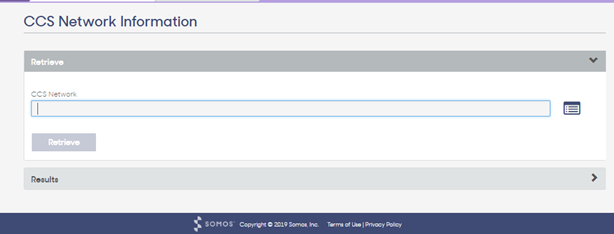

To access the NET page, from the Landing page or from any page, you can select the Menu icon (in the upper left corner), the "Network and SCP Administration" menu item and then the "CCS Network Information (NET)" sub-menu item. Once the "CCS Network Information" sub-menu item has been selected, the sub-menu item will be highlighted and the NET page will be displayed. On the NET page, the Network information can be retrieved by providing CCS Network.
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.
For more information on the NET fields, their descriptions and their valid values, please click here.
