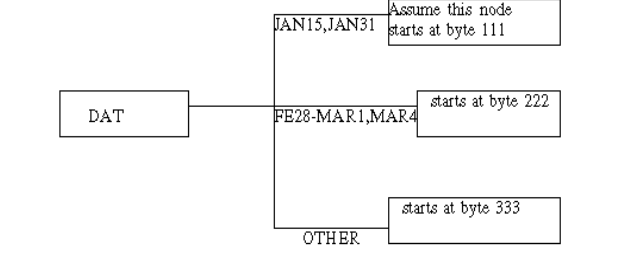

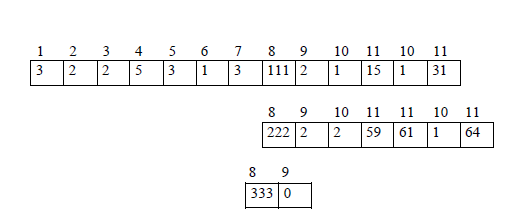

Decision Node: TFNRegistry™ Date (DAT) Node
Node type - 1 byte binary
3 : DOY
Number of Qualifier -1 byte binary
2: 2 Qualifiers are required for the DAT node
Qualifier ID -1 byte binary
2 : Time Zone
Qualifier Value - 1 byte binary
5 : Pacific Time
Qualifier ID - 1 byte binary
3 : Day Light Savings
Qualifier Value - 1 byte binary
1 = DLS not in effect
Number of branches - 2 bytes binary
Child Offset - 4 bytes binary
Number of Values (in this branch) - 2 bytes binary
NOTE: 0 indicates OTHER branch.
Value Type - 1 byte binary
1 : single match
2 : range match
Value - 2 bytes binary
