Decision Node: TFNRegistry Day Node

Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.

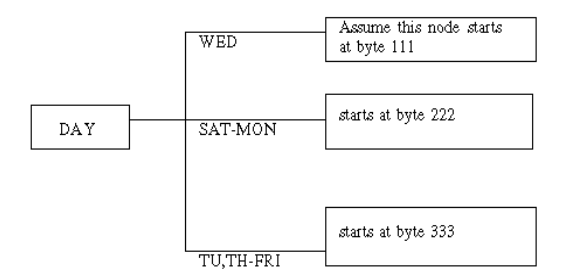

Note that in the second branch, the SAT-MON range was replaced by two values, first value is SAT
and second value is the range SUN-MON. This replacement is required since the end value of a
range has to be larger than the starting value. Also the third branch was changed into an
"OTHER" branch.

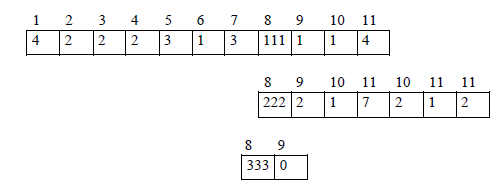

Node type - 1 byte binary
      4: DOW
Number of Qualifier -1 byte binary
      2: 2 Qualifiers are required for the Day Node
Qualifier ID - 1 byte binary
      2 : Time Zone
Qualifier Value - 1 byte binary
     2 : Eastern Time
Qualifier ID - 1 byte binary
     3 : Day Light Savings
Qualifier Value - 1 byte binary
     1 : Day Light Savings not in effect
Number of branches - 2 bytes binary

Child Offset - 4 bytes binary
Number of Values (in this branch) - 2 bytes binary
     NOTE: 0 indicates OTHER branch.
Value Type - 1 byte binary
     1 : single match
    2 : range match
Value - 1 byte binary

Day Node Branch Values Definitions
The values on the branches of the Day node are specified as follows:
