Decision Node: TFNRegistry® LATA Node
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.
Node type - 1 byte binary
2: LATA
Number of Qualifier - 1 byte binary
0 : LATA node does not require qual.
Number of branches - 2 bytes binary

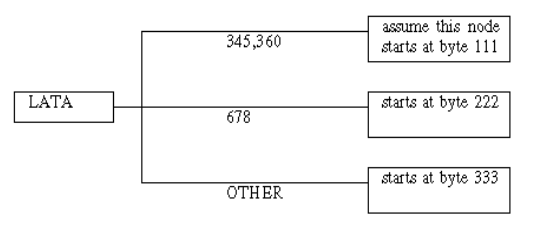

3: 3 branches in the above example
Child Offset - 4 bytes binary
Number of Values (in this branch) - 2 bytes binary
Note: 0 value indicates OTHER branch.
Value Type - 1 byte binary
1 : single match
Value - 2 bytes binary
LATA
