Decision Node: TFNRegistry® NXX Node
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.

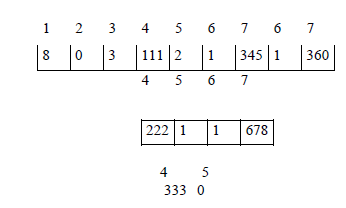

Node Type - 1 byte binary
8: 3 Digit NXX decision node
Number of Qualifier - 1 byte binary
0 : NXX node does not require qual.
Number of branches - 2 bytes binary

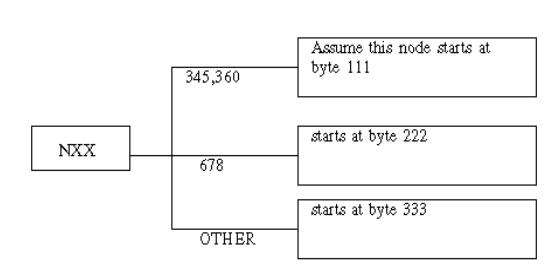

3 : 3 branches in the above example
Child Offset - 4 bytes binary
Number of Values (in this branch) - 2 bytes binary
Note: "0" value indicates OTHER branch
Value Type - 1 byte binary
1 : single match.
Value: 2 bytes binary
For NXX
