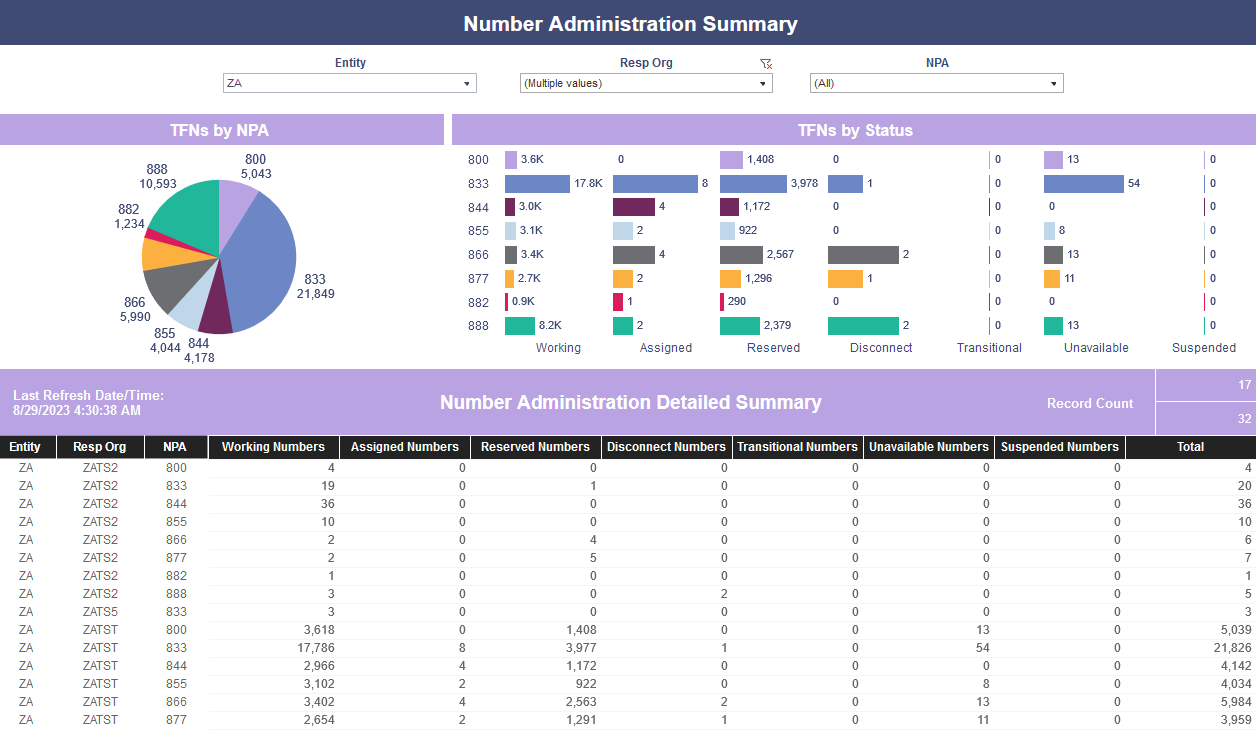

The Number Administration Summary Report provides a count of the Working, Assigned, Reserved, Disconnected, Transitional, Unavailable and Suspended Toll-Free Numbers, based on number status, per Resp Org, within a user’s Entity. The following figure provides an example of the Number Administration Summary Report.
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.
Number Administration Summary Report Field Descriptions
The following table identifies the Number Administration Summary report fields and their descriptions .
|
Number Administration Summary Report Field Descriptions |
|
|
Field |
Description |
|
Entity |
An identifier for the Entity. |
|
Resp Org |
The Responsible Organization that controls the summarized numbers. |
|
NPA |
Identifies the NPA of the Toll-Free Numbers. |
|
Working Numbers |
A count of the total Working Toll-Free Numbers for the Resp Org. |
|
Assigned Numbers |
A count of the total Assigned Toll-Free Numbers for the Resp Org. |
|
Reserved Numbers |
A count of the total Reserved Toll-Free Numbers for the Resp Org. |
|
Disconnect Numbers |
A count of the total Disconnected Toll-Free Numbers for the Resp Org. |
|
Transitional Numbers |
A count of the total Transitional Toll-Free Numbers for the Resp Org. |
|
Unavailable Numbers |
A count of the total Unavailable Toll-Free Numbers for the Resp Org. |
|
Suspended Numbers |
A count of the total Suspended Toll-Free Numbers for the Resp Org. |
|
Total |
Total of all the Toll-Free Numbers for the Resp Org. |
|
Last Refresh Date/Time |
Identifies the date and time the report last refreshed. |
|
Record Count |
Display the count of records associated with the filtered data set (xxxxxxx) and the grand total of records (yyyyyyy) formatted as xxxxxxx/yyyyyyy. |
Data Source Used to Create the Report
The “RHDB_NASUMM" data source is used to create the Number Administration Summary Report. The fields used from this table are:
- Entity
- Org
- Npa
- Numreserve
- Numunavail
- Numtransition
- Numspare
- Numassign
- Numdisconnect
- Numworking
- Numsuspend
- Download_Date
Please Note: Please refer to the Number Administration Summary Counts Table (RHDB_NASUMM) for more information.
