The Resp Org Template Utilization Report provides information regarding the Customer Record Distribution (Number of Basic CRs, Complex CRs and Pointer CRs) and the Template Utilization (Number of Resp Org IDs using Templates versus Number of Resp Org IDs not using Templates) for the Resp Org’s Entity.

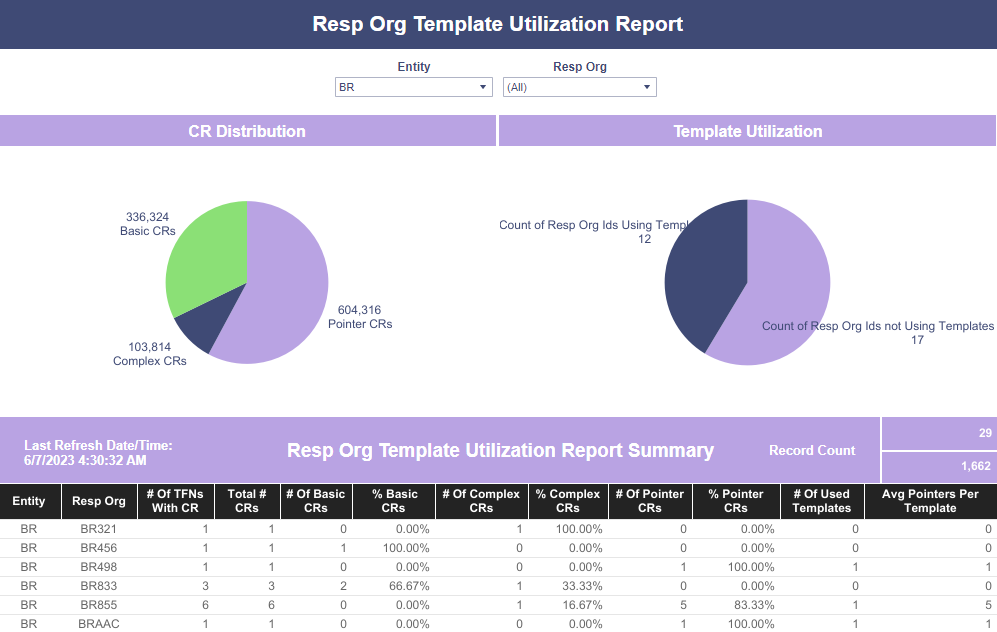

The following figure provides an example of the Resp Org Template Utilization Report.
Disclaimer: Any images in this article are intended to be used as a guide for educational purposes only and they may differ slightly from the Production Environment.
Resp Org Template Utilization Report Field Descriptions
The following table identifies the Resp Org Template Utilization Report fields and their descriptions.
|
Resp Org Template Utilization Report Field Descriptions |
|
|
Field |
Description |
|
Entity |
Identifies the Resp Org’s Entity. |
|
Resp Org |
Identifies the 5-character Resp Org ID, comprised of a 2-character Entity ID followed by a 3-character Org ID. |
|
# Of TFNs with CRs |
The count of TFNs that have CRs (regular CRs and PRs). |
|
Total # of CRs |
The count of regular CRs and PRs existing in the SMS/800 TFN Registry, in any status. |
|
# Of Basic CRs |
The count of simple regular CRs (not containing CPR) existing in the SMS/800 TFN Registry. |
|
% Of Basic CRs |
Percentage of simple CRs in Customer Records (regular CRs and PRs). |
|
# Of Complex CRs |
The count of complex CRs (containing CPR) existing in the SMS/800 TFN Registry. |
|
% Of Complex CRs |
Percentage of complex CRs in Customer Records (regular CRs and PRs). |
|
# Of Pointer Records |
The count of PRs defined in the SMS/800 TFN Registry. |
|
% Of Pointer Records |
Percentage of PRs in CRs (regular CRs and PRs). |
|
# Of Used Templates |
Count of Templates used in the SMS/800 TFN Registry. |
|
Avg Pointers per Template Name |
Average number of PRs per Template name in the SMS/800 TFN Registry. |
|
Last Refresh Date/Time |
Identifies the date and time the report was last refreshed. |
|
Record Count |
Display the count of records associated with the filtered data set (xxxxxxx) and the grand total of records (yyyyyyy) formatted as xxxxxxx/yyyyyyy. |
Data Sources Used to Create the Report
The “RHDB_TMPL_UTILIZATION_DATA_RESPORG_LVL” data source is used to create the Resp Org Template Utilization Report. The fields used from this table are:
- Entity
- Resporg
- No_of_TFNs_with_CR
- Total_no_of_CRs
- No_of_Basic_CRs
- No_of_Complex_CRs
- No_of_Pointer_CRs
- No_of_used_Templates
- Extractdate
Note: Click here for more information about the Resp Org Template Utilization Report (RHDB_TMPL_UTILIZATION_DATA_RESPORG_LVL).
