The Area of Service Labels (ASL) Reports are pre-defined reports, which are included in the Area of Service Label (ASL) Reports category of the Corporate Documents folder. The Reporting produces Area of Service Label (ASL) reports on-demand and/or a scheduled basis.
The on-demand and scheduled reports are requested by the “System Users” (e.g., Resp Org Administrators and Resp Org Users, etc.) via the Reporting function. Usually, this data is updated nightly.

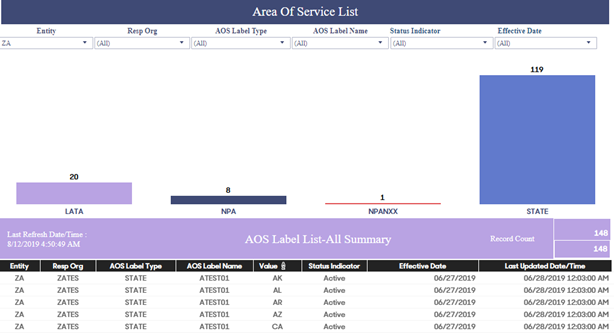

The following figure provides an example of the Area of Service Labels reports (see Figure 169 Area of Service List Report).
Figure 169 Area of Service List Report
Area of Service List Report Field Descriptions
The following table identifies the Area of Service List report fields and their descriptions (see Table 45 Area of Service List Report Field Descriptions).
Table 45 Area of Service List Report Field Descriptions
|
Area of Service List Report Field Descriptions |
|
|
Field |
Description |
|
Entity |
An identifier for the Entity. |
|
Resp Org |
An identifier for the Resp Org. |
|
AOS Label Type |
The AOS Label Type: NPA, NPANXX, LATA, or STATE. |
|
AOS Label Name |
The AOS Label Name. |
|
Value |
The NPA, NPANXX, LATA, or STATE values depending upon the AOS Label Type. |
|
Status Indicator |
Indicates the status for AOS Label. Possible values are:
|
|
Effective Date |
The Effective Date for the Action (Pending Addition or Pending Deletion) of the listed AOS Label. |
|
Last Updated Date/Time |
The date of the data updated in the Transactional database. |
|
Last Refresh Date/Time |
Identifies the date and time the report was last refreshed. |
|
Record Count |
Display the count of records associated with the filtered data set (xxxxxxx) and the grand total of records (yyyyyyy) formatted as xxxxxxx/yyyyyyy. |
Data Source Used to Create the Report
The “RHDB_AOSLABELS” data source is used to create the Area of Service List report. The fields used from this table are:
- AOS Label Name
- AOS Label Type
- Create_Logonid
- Create_Time
- Effective Date
- Extractdate
- Resp Org
- Status Indicator
- Update Time
- Update_Logonid
- Value
Please Note: Please refer to Chapter 15.55 Area of Service Label List Table (RHDB_AOSLABELS) for more information.
